Every widget that
makes a tote useful.
Totes come with roughly a dozen failure points, and almost every one is a cheap, bin-pickable fix. Keep a spare or two on the shelf and you'll run the same tank for another decade.
Skip the phone tag. Leave a note — we'll reply by email.
Twelve failure points. Every one is a cheap fix.

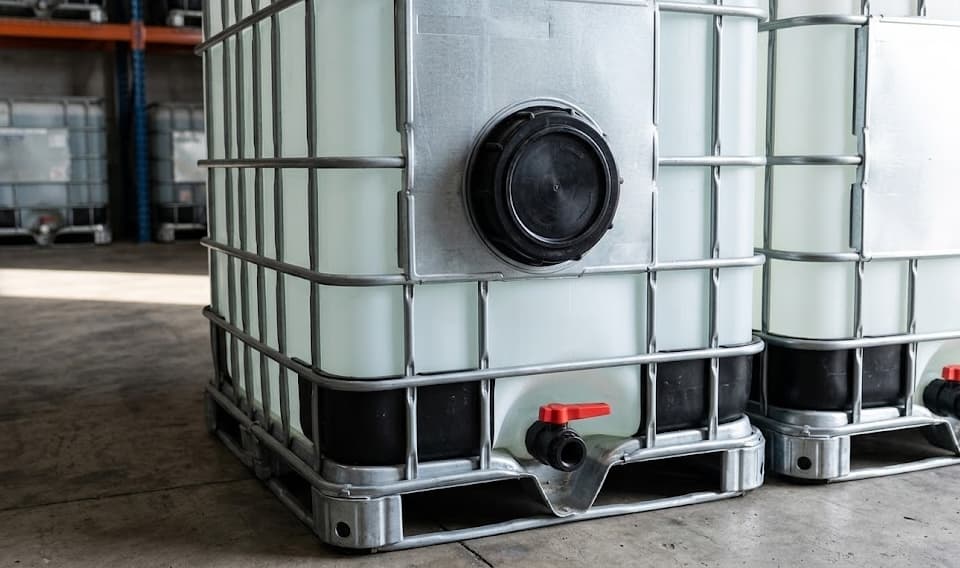

The lid, the 6-inch screw cap, the 2-inch ball valve, the gasket behind it, and the small bonding surface where the discharge neck meets the bottle. Each of these wears on its own schedule. Keep a shelf of spares — a lid and a ball valve each cost less than a lunch — and the same tote keeps its life for another decade.
Valves
| Part | Description | Price |
|---|---|---|
| 2″ Ball valve (standard) | Polypropylene body, EPDM seal. Fits most 275 & 330 gal totes. | $18.00 |
| 2″ Butterfly valve | Food-grade stainless, FDA seals, quarter-turn. | $42.00 |
| Camlock kit (type C+E) | Aluminum. Swaps to your existing hose line. | $28.00 |
| Quick-disconnect valve | For DEF and biodiesel transfer stations. | $34.00 |
Lids & caps
| Part | Description | Price |
|---|---|---|
| 6″ screw cap w/ vent | Standard blue top. Keeps critters honest. | $7.00 |
| 6″ locking cap | Padlockable. For outdoor storage. | $19.00 |
| 2″ filler cap | Replacement for the smaller side port. | $4.00 |
| Screen insert | Mosquito-mesh drop-in for rain use. | $5.00 |
Structural
| Part | Description | Price |
|---|---|---|
| Replacement cage | Straightened, powder-coated. Painted moss green. | $65.00 |
| Wood-composite pallet | Replacement skid. | $30.00 |
| All-steel pallet | Upgrade for forklift-heavy yards. | $90.00 |
| Sight tube (polyethylene) | Level gauge. Kid-approved for backyard tanks. | $12.00 |
Fittings & plumbing
| Part | Description | Price |
|---|---|---|
| Bulkhead fitting (1½″) | For drilling new ports into a tote. | $9.00 |
| Brass adapter set | Hose threads to NPT. | $14.00 |
| Y-splitter (2″) | Run two hoses off one valve. | $22.00 |
| Stainless gasket pack | EPDM + silicone variants. | $11.00 |
The 2″ buttress and its cousins.
Most tote hardware fails because somebody bought the wrong thread. Here's the short field guide. If you're unsure, photograph the existing valve flange, send it to the yard, and we'll match it off the photo.
| Thread | Where it lives | Typical ask |
|---|---|---|
| 2″ buttress (S60×6) | The discharge port on almost every 275 or 330 | Ball valve, butterfly, camlock adapter |
| 6″ coarse (DIN 160) | The fill cap on top of the bottle | Vented cap, locking cap, screen insert |
| NPT ½″, ¾″, 1½″ | Aftermarket bulkhead fittings drilled by us | Sight tubes, pressure gauges, drains |
| Camlock Type C / E | Quick-disconnect interface to hose lines | Bio-D transfer, DEF pumping, washdown |
| BSPP ¾″ / 1″ | Euro-origin Schütz tanks, occasional runs | Export customers or used-from-import stock |
The cheap fixes that save a tote
We get calls every week about "dead" totes that are actually three parts shy of perfect. Before scrapping a tank, check these five things. Every one is bin-pickable from our shelf and most of them install with a crescent wrench.
The #1 cause of a weeping valve. Pops in, seats flat.
Snapped handle doesn't mean the valve is dead — replace the lever.
Missing cap = mosquito nursery. Replace and screen.
Straighten the cage, re-rivet, and the tote is structurally back.
A cracked pallet looks fatal but swaps in ten minutes.
Gasket chemistry cheat sheet
The valve body and ball are usually fine. The gasket is where fluid compatibility lives and dies. Get this wrong and a tote that looks perfect starts weeping at the flange in under 72 hours.
| Fluid | Reach for | Avoid |
|---|---|---|
| Rainwater / potable | EPDM, silicone | Viton (overkill), NBR (water swells it) |
| Diesel / biodiesel B20+ | NBR (Buna-N), Viton | EPDM (swells), silicone |
| DEF (urea 32.5%) | EPDM | NBR (degrades) |
| Sodium hydroxide up to 20% | EPDM, PTFE | Buna-N |
| Acetic acid 5% (vinegar) | PTFE, EPDM | Silicone, NBR |
| Essential oils / terpenes | Viton, PTFE | EPDM, silicone |
| Maple syrup / honey | Silicone FDA, PTFE | NBR (taint risk) |
This table is conservative, not exhaustive. Concentrations and temperatures matter. For anything hotter than 120 °F or more corrosive than a dilute caustic, call us before ordering.
How the bins actually work
We keep roughly 100 SKUs on the accessories shelf, all bin-picked by a part number stenciled on a wooden sort drawer. The system is embarrassingly analog and hasn't failed us in sixteen years. A few operational notes:
- · Pickup is free and open 8–4 Mon–Fri. Show up, we pull it. Most visits are under 15 minutes.
- · Ground ship under 2 lb lands via USPS at standard rates anywhere east of the Mississippi.
- · Bulk freight for 50+ gaskets or 25+ valves goes on our Tuesday/Thursday box truck run within the PA/OH/WV triangle.
- · OEM vs aftermarket — we stock both, and we'll tell you which one fits your exact Mauser, Schütz, or Greif spec.
- · Emergency parts — if you're a recurring customer and something blows at 2 a.m., we have a short list of phone numbers for off-hours pickup. Ask.
